Vertical Mixed-Flow
Max Flow
24,500 US gpm
Max Dynamic Head
150 ft
Bowl Sizes
8″–24″
Drivers
VSS and VHS Motors
Up to 1000 HP
Right Angle Gear Drives
Applications
Flood Control, Mining, Wastewater, Hydroelectric, Marine, Land Reclamation, Water Distribution, Stormwater, Hydraulic Engineering, Sewage Treatment, Power Generation
Looking for Taco pumps?CLICK HERE

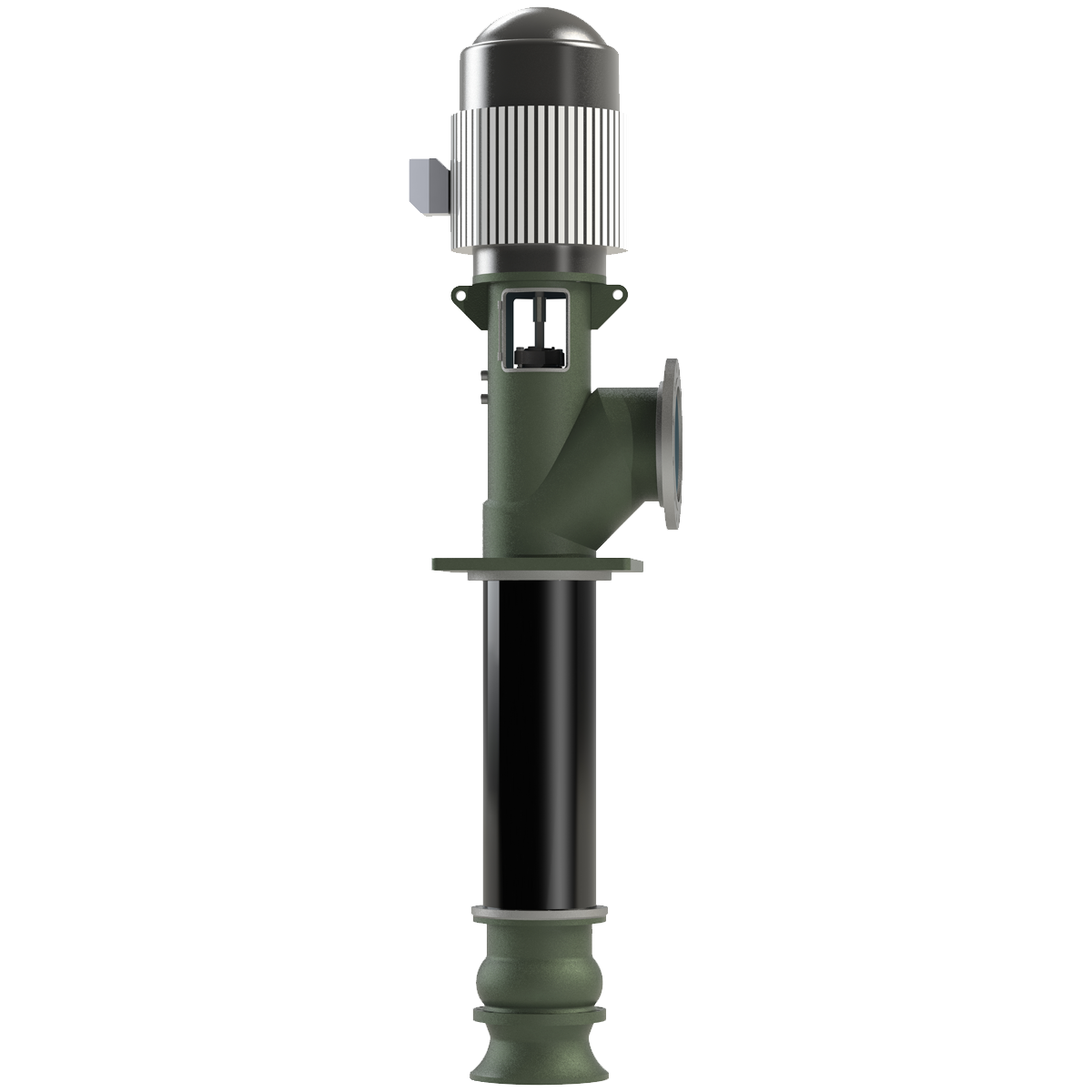

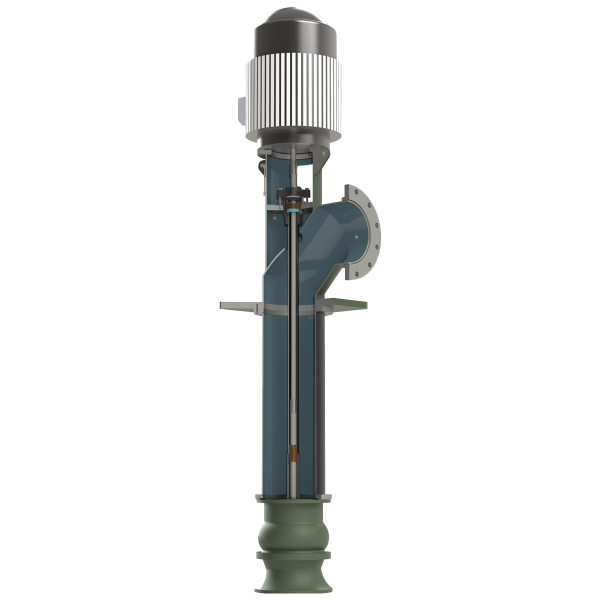

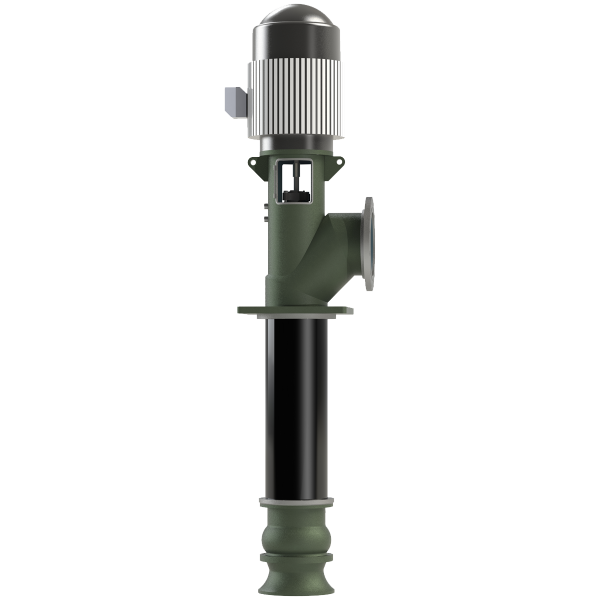

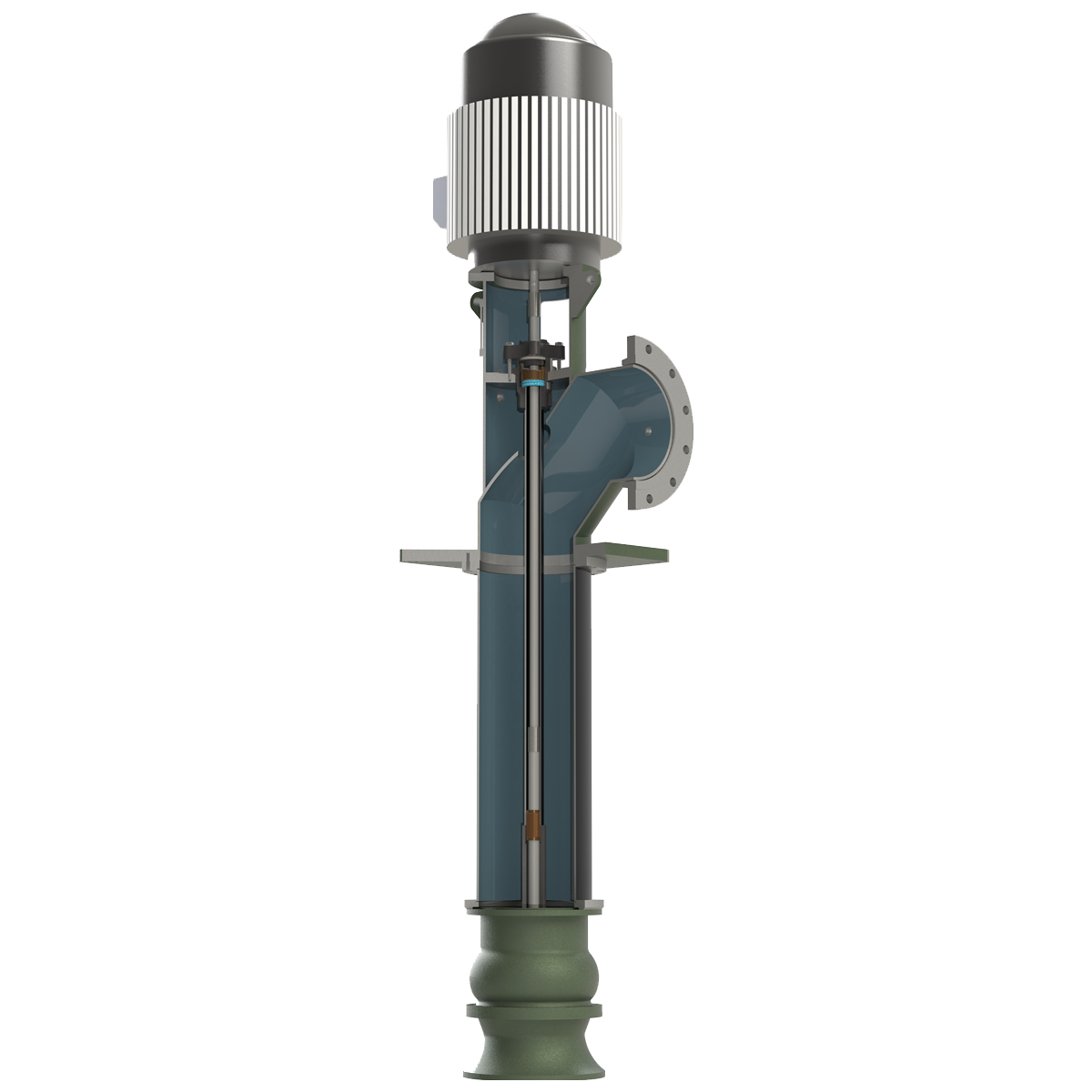

Vertical Mixed-Flow Pumps
Designed uniquely, combining characteristics of both axial and radial flow pumps, these pumps have a distinctive impeller design with curved blades that combine axial and radial flow, allowing for efficient water circulation. These pumps are used in applications requiring moderate to high flow rates, moderate pressure to overcome elevation differences, and efficient movement of large volumes of water for water management and industrial applications such as irrigation systems, drainage, sewage treatment, and industrial processes.
Features
- Open and Enclosed Lineshaft Configurations
- Special coatings and materials
- Engineering Analysis
- Mechanical Seal Options
- ½” to 4″ Sphere Pass
Certifications/Standards
- HI, AWWA Design Standard
- ASME Design Standard
COMING SOON
COMING SOON
Fabrication
Discharge Heads, Column Pipes, Underground Discharge, Motor Stands, Custom Design
Materials
- SS & Bronze Impeller Options
- Class 30 Cast Iron – Bowls
- Ductile Iron Optional
Testing Facility
- Bowl Assembly Performance Testing
