Vertical Axial-Flow
Max Flow
36,500 US gpm
Max Dynamic Head
30 ft
Bowl Sizes
8″–30″
Drivers
VSS and VHS Motors
Up to 1000 HP
Right Angle Gear Drives
Applications
Flood Control, Wastewater, Land Reclamation, Water Distribution, Stormwater, Hydraulic Engineering, Sewage Treatment
Looking for Taco pumps?CLICK HERE

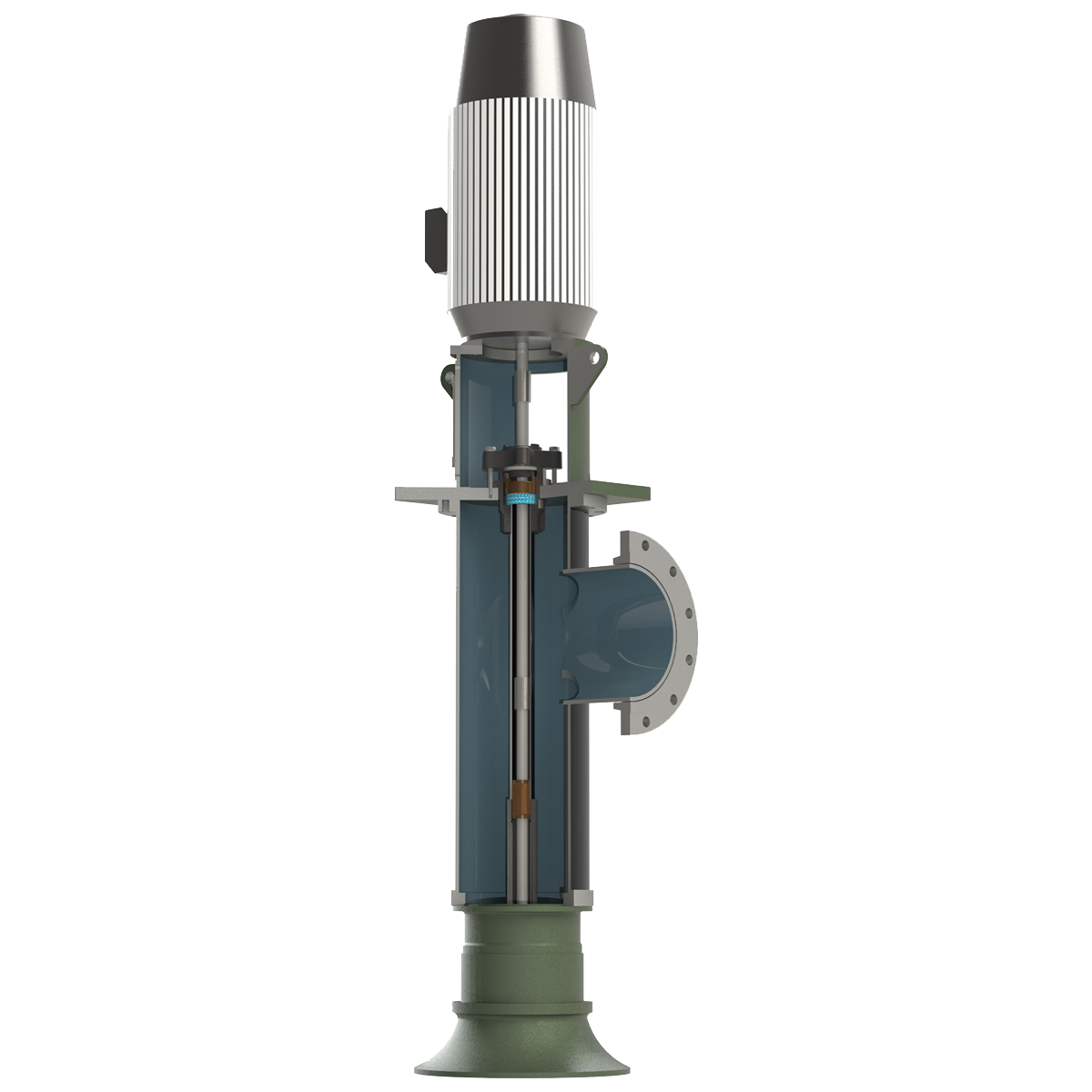

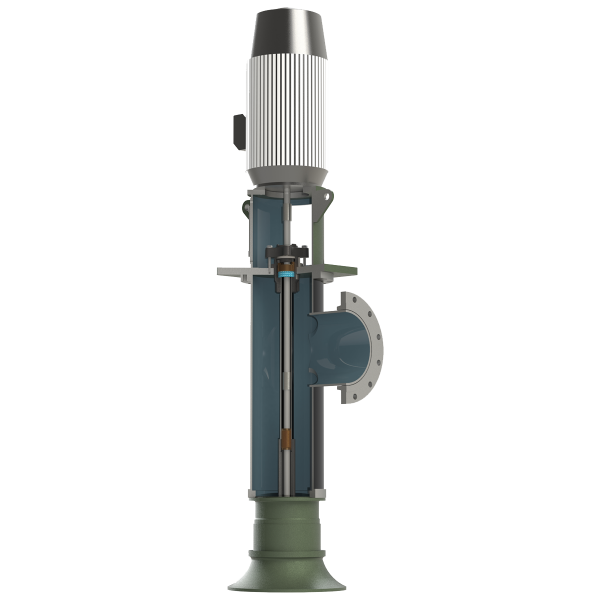

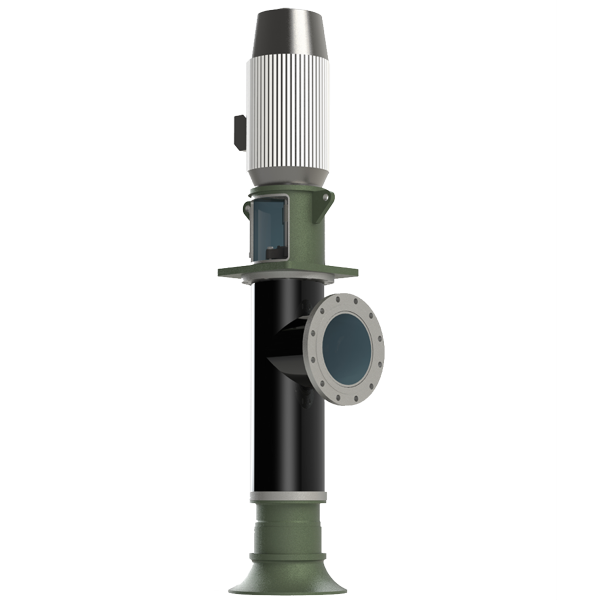

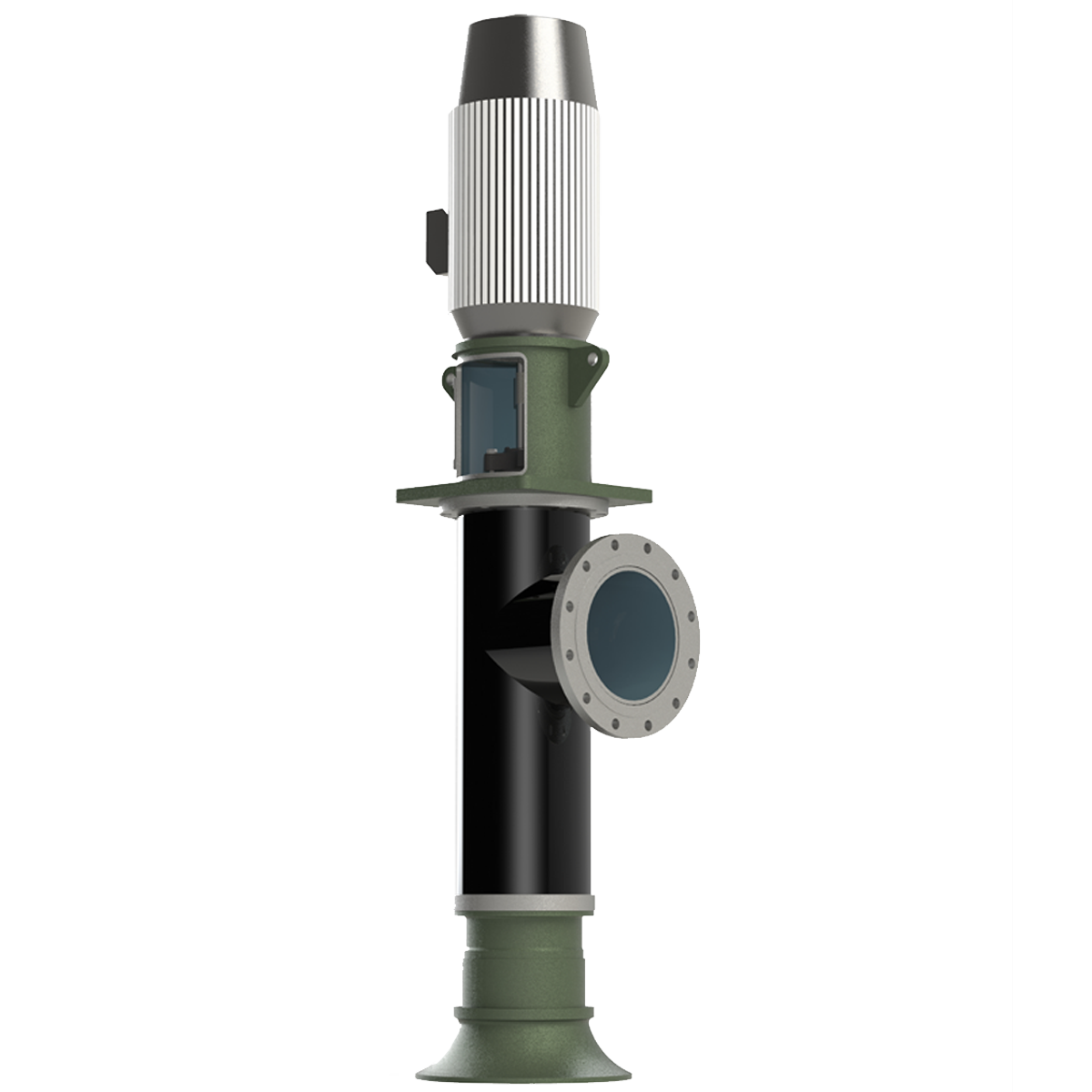

Vertical Axial-Flow Pumps
Designed to move large volumes of fluid vertically with minimal head or pressure increase (unlike centrifugal pumps that operate radially), axial flow pumps use axial motion parallel to the shaft to propel the fluid. These pumps consist of rotating blades or propellers inside a casing and are ideal for applications requiring a substantial flow rate. Highly efficient in moving liquids over long distances while maintaining constant pressure, these pumps are ideal for various industrial, municipal, and agricultural purposes such as drainage systems, irrigation, flood control, and wastewater treatment.
Features
- Open and Enclosed Lineshaft Configurations
- Special coatings and materials
- Engineering Analysis
- Mechanical Seal Options
- 2-1/4″ to 5-7/8″ Sphere Pass
Certifications/Standards
- HI, AWWA Design Standard
- ASME Design Standard
COMING SOON
COMING SOON
Fabrication
Discharge Heads, Column Pipes, Underground Discharge, Motor Stands, Custom Design
Materials
- SS & Bronze Impeller Options
- Class 30 Cast Iron – Bowls
- Ductile Iron Optional
Testing Facility
- Bowl Assembly Performance Testing
